|Box Name||Box SKU||Box QTY||Length||Width||Height||Weight|
|T1017-BOX-2707-1||2707-1||1||40 cm||25 cm||10.5 cm||11.6 kg|
|T1017-BOX-2707-2||2707-2||1||40 cm||25 cm||10.5 cm||11.6 kg|
|T1017-IG-BOX-2823||2823||1||192 cm||34 cm||13.5 cm||52.2 kg|
|T1017-IG-BOX-2822||2822||1||178 cm||59 cm||34 cm||49.4 kg|
|T1017-IG-BOX-2821||2821||1||192 cm||79.5 cm||16 cm||50 kg|
|T1017-IG-BOX-2824-X||2824-X||1||100 cm||44 cm||8.5 cm||7.4 kg|
The trampoline does not include materials to build an inground structure. The below manual is for the trampoline assembly only. For guides on how to build a trampoline inground read this information page

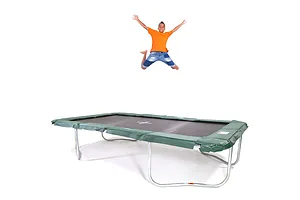

The 10x17ft is also known as our "Olympic Sized Trampoline", making it the perfect size for gymnasts or anyone wanting a huge trampoline. The frame’s unique pre-tensioned design gives it a superior bounce to our earlier models and others similar in the market. The enjoyable bounce combined with a massive amount of space; makes it great for hours of fun for the kids (or even adults).
This 10x17ft Trampoline includes not only a high bounce mat but also a full set of Australian made springs which feature a larger wire, and spring diameter (along with higher quality spring wire and a galvanised finish) which results in an extra smooth bounce. Some users (mainly the lighter users) say they achieve a higher bounce however, most say the height of the bounce is about the same as our high bounce model (without the Australian Springs) but it's a more 'silky' (smooth) bounce.
The trampoline mat material is sourced from Tencate™ Permatron®, (Tencate is a USA based company). This is the most durable & UV resistant trampoline mat material available, all backed by our three-year warranty.
NOTE: Our spare parts will come with either a White Cross or the GeeTramp logo in the middle of the mat. Contact us if you have a strong preference for either one, as we can check which is currently available.
These pads are carefully hand-made and designed from the ground up with safety, durability, and long life in mind. Our pads feature a unique two-step foam that puts protection where you need it the most, (over the frame), also making it very water resistant - the water just runs off the pads and prevents excessive pooling.
Made from 60x2.5mm double hot-dipped galvanised steel. Our trampoline frame provides a very sturdy base for the springs and jumping mat and will also give the user a more responsive bounce.
With this trampoline, you can upgrade to our high bounce mat which is specifically designed and tested to improve bounce. If your kids are getting into gymnastics or trampolining, they will love our high bounce mat.
We have designed this trampoline to be as easy as possible to assemble. This process should only take 2 people about 1-2 hours.
- Local landscaper
Note: We do not install In Ground trampolines.
- Local government requirements
- Soil type
- Retaining wall
- Getting the hole and retaining wall sizes right
Note: The trampoline frame sizes listed on our website are for naming the generic size of a trampoline and should be treated as a ballpark reference only, these nominal sizes should not be relied upon when digging the actual hole or for making the retaining wall. For our rectangle range, the long side rail bow’s out a little by design which needs to be factored in. Depending on the installation method you choose, you may also need to allow for an air flow gap. When sizing up to make the hole or retaining wall it is strongly suggested you already have the trampoline with the mat and springs assembled so you can then directly measure off the "actual" assembled product dimensions.
|Maximum Weight Capacity||150kg|
|Frame Size (Imperial)||10 x 17ft|
|Frame Size (Metric)||3048 x 5240mm|
|Frame Height, Ground to Mat Height - F||1070mm|
|Frame Tube Size||60 x 2.5mm|
|Leg Tube Size||60 x 2.5mm|
|Steel Tube Finish||Hot dip heavy duty galvanised inside & out|
|Mat Size||2375 x 4520mm|
|Mat Material||USA Tencate™ Permatron® Woven Polypropylene|
|Spring Quantity - Per Side||16 x 32|
|Spring Quantity - Total||96|
|Spring Padding Cover||Forest green, PVC 500D x .55mm thick for upper & lower cover|
|Spring Padding Insert||EPE foam, 330mm wide, 50mm thick over the frame, 25mm thick at the mat edge|
